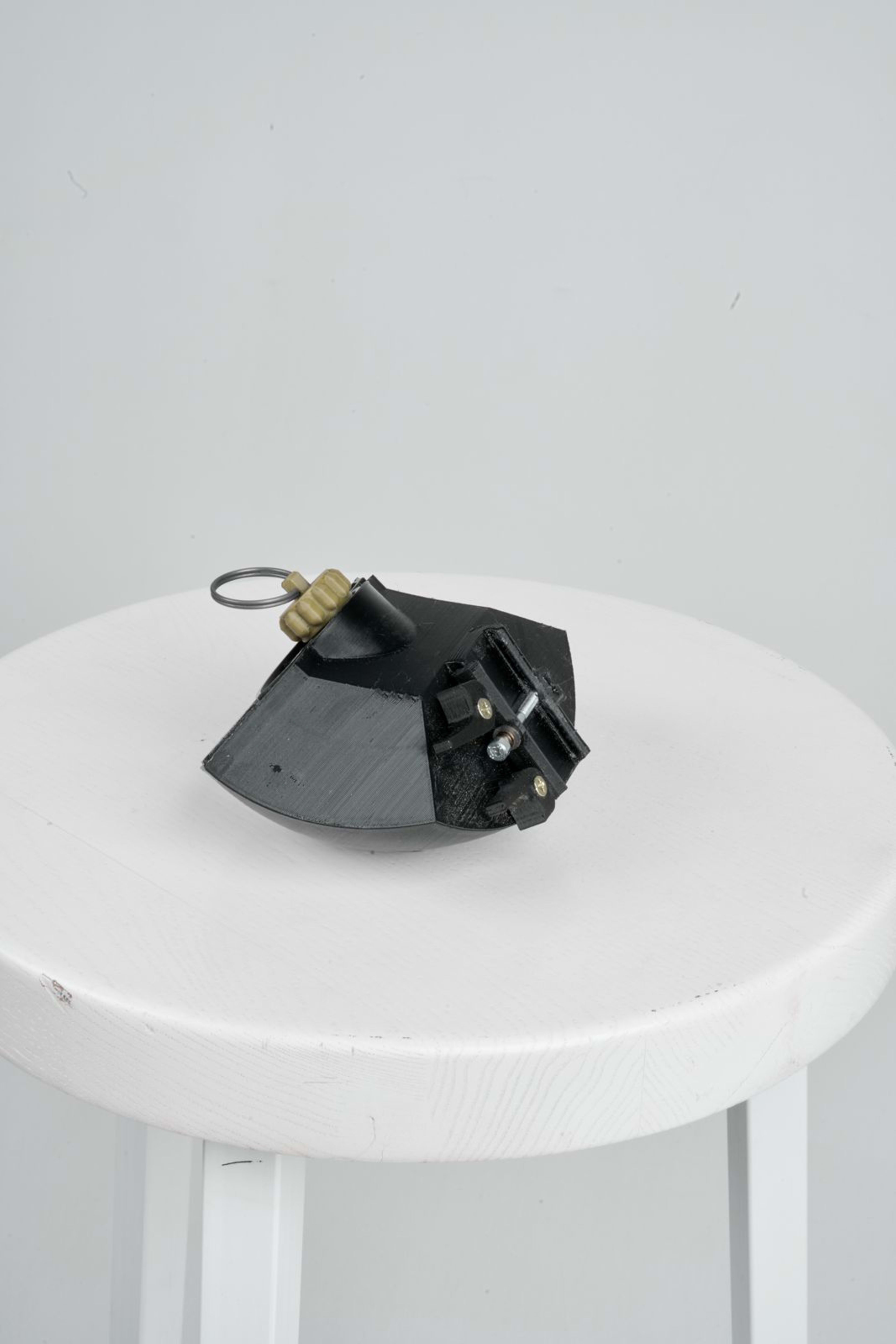

FPV-CLAYMORE-1.5
Directional fragmentation payload KEY TASKS & ADVANTAGES - A directional fragmentation effect: 2000 ± 3% fragmentation elements (metal balls, 5 mm diameter, 0.5 g weight) ensure dense target destruction. - Continuous kill zone is 10 m, and when applied from a height of 5 m the continuous kill zone covers no less than 60 m². - Wide fragment spread angle: 80° in width (15–20 m) and 100° in length (10–14 m) when dropped from a height of 10 m — ensures target destruction even with an imprecise hit. - A powerful UKRAINIUM explosive charge (190 g ± 10g) provides reliable engagement of enemy personnel and unarmored vehicles. - A reliable initiation system (EKD-1R + ED8-Zh 1100 electric detonator) guarantees stable functioning of the munition. - Optimal weight (1.53 kg) and compact dimensions allow the unit to be used on most serial FPV platforms. - A wide operating temperature range (from 35°C to +35°C) and resistance to humidity up to 98% ensure reliability in field conditions.
FULL SPECIFICATIONS LIST
| Purpose | Engaging enemy personnel, unarmored vehicles, and military equipment |
|---|---|
| Combat action type | Fragmentation |
| Min. stabilization height | 0 m |
| Operating height | 4-6 m |
| Usage conditions | Temperature: -30°C to +35°C; Humidity: ≤ 98% |
| Mass & dimensions | - |
| Length | 141 mm |
| Warhead length | - |
| Warhead diameter | 96.4 mm |
| Tail length | - |
| Tail fin diameter | - |
| Product mass | 1530 g |
| Explosive mass | 190 g |
| Activation angle | 80° |
| Armor penetration | - |
| Fragmentation | Metal ball: diameter 5 mm, weight 0.5 g |
| Continuous damage range | 10 m |
| Reusability | No |
| Safety count | 1 |
| Initiation method | Electric detonator |
